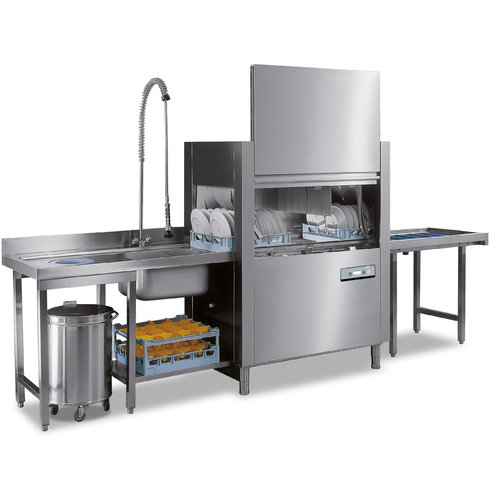

Conveyor Dishwasher 500 x 500 mm, up to 270 baskets/h

Conveyor Dishwasher 500 x 500 mm, up to 270 baskets/h

description:

• casing made entirely of high quality stainless steel
• double filter in the chamber stopping even the smallest dirt, the first layer made of stainless steel, second made of plastic
• vertical cleaning pumps provide excellent performance
• gravitational outflow
• washing temperature: 60-63 ° C
• burning temperature: 80 ° C
• legs to facilitate proper leveling of the dishwasher
• electronic control panel
• user-friendly interface

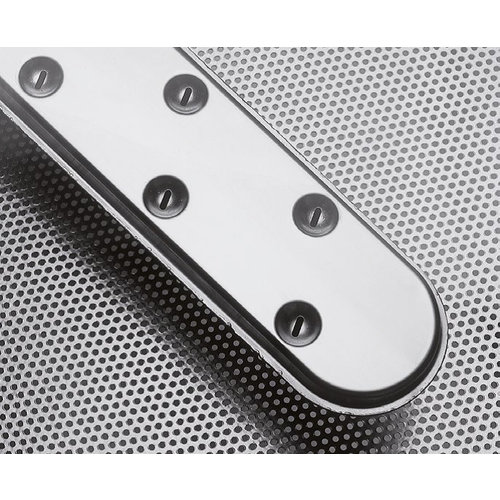

• excellent washing and rinsing thanks to specially designed wash arms Rinsing with innovative tabs made of stainless steel
• door with double walls for thermal-acoustic insulation and with counterweight

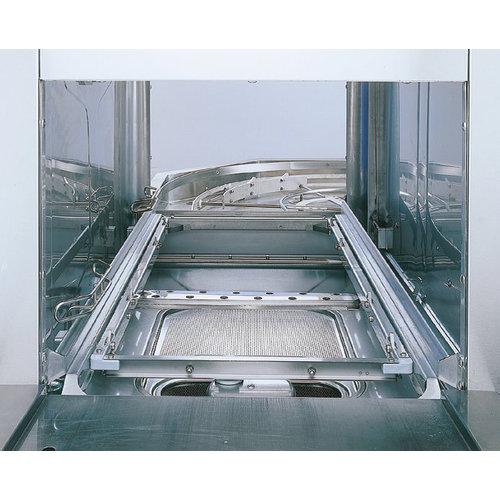

• hygienic guides allowing to achieve the best washes
• specially contoured tank facilitating the walking Residues
• stainless steel doors 10/10
• legs Empowering proper leveling of the dishwasher
• modular dishwashers allow you to choose the right model depending on your needs
• compact line EVO101 - EVO201 ideally suited to premises with a limited area combining high efficiency with reduced water consumption
• Available pre-washing module Removes greater residues, accumulating them in an easy to empty a drawer filter (EVO301-EVO431 models)
• the height of the charge 450mm allows you to wash larger dishes, baking sheets, pots and various utensils Kitchen
• Dishwashers do not have a wash-drying and ribbed fluid feeder
• optionally available washing liquid dispenser -
• Optionally available Liquid fluid dispenser
• electric, drainage and water supply cable
  3/4 inch

included:

• 1x glass basket 50x50x10 cm
• 2x basket for 18 plates 50x50x10 cm
• 1x basket on cutlery with 4 partitions

Technical parameters:

• external dimensions WXDXH [mm]: 3119x813x1825
• maximum load height [mm] : 450
• Dimensions of the basket [mm]: 500x500
• Performance [Number of baskets / h]: 135/200/270
• Total power [kW]: 32 , 8
• power supply [v]: 400
• pre-washing module: yes
• tank capacity [l]: 69
• pump power Washing [kw]: 1.5
• washing module: Yes
• tank heater power: 10,5
• Washing pump power [kW]: 1.5
• end rinsing module: Yes
• Rinsing pump power [kW]: 0.2
• heater power boiler [kW]: 12
• water consumption [l / h - 2bar]: ~ 230
• suggested supply water temperature [° C]: +15
• minimum water pressure [bar]: 1, 5
• dried module: Yes
• fan power [kW]: 0.55
• capacity [m3 / h]: ~ 1400
• Power of heating elements [kW]: 6
• Heat recovery module: Yes
• Dispenser power [kW]: 0.2
• Performance [m3 / h]: 70

* When connecting cold water: 10 ÷ 25 ° C, a heat recovery module is required, 26 ÷ 50 ° C is required required An additional EV-B9 boiler

Why choose EVO tunnel dishwashers from Krupps?

• guarantee very high performance and are adapted to extreme overloads
• design enables Expanding the dishwasher with subsequent modules, according to the premises
• EVO Dishwashers combine high performance with low water consumption
• Dishwasher has a very efficient cleaning pump that allows thoroughly wash evenly soiled dishes at low consumption Energy
• All KRUPPS dishwashers have a burning function
• KRUPPS dishwashers are 50 years of experience of the Italian manufacturer in the construction of this type of equipment, which is associated with very low failure and innovative solutions affecting quality washing and low energy consumption
• 12 month warranty throughout Poland
