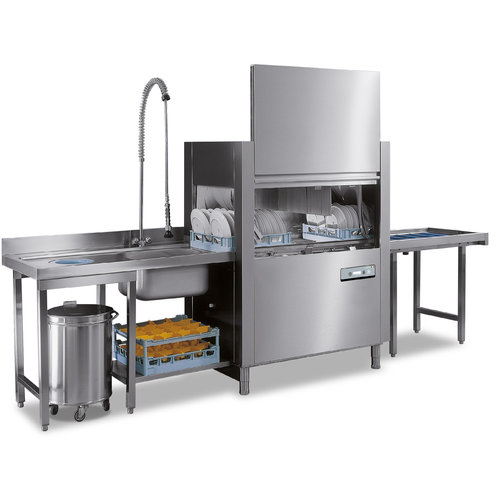

Conveyor Dishwasher 500 x 500 mm, up to 270 baskets/h

Conveyor Dishwasher 500 x 500 mm, up to 270 baskets/h

description:

• casing made entirely of high quality stainless steel

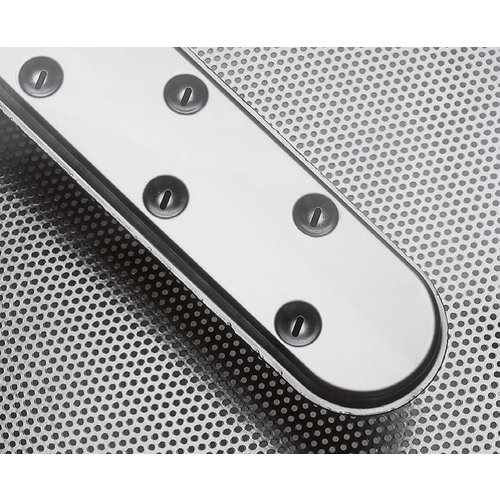

• double filter in the chamber stopping even the smallest dirt, the first layer made of stainless steel, second made of plastic
• vertical cleaning pumps provide excellent performance
• gravitational outflow
• washing temperature: 60-63 ° C
• burning temperature: 80 ° C
• legs to facilitate proper leveling of the dishwasher
• electronic control panel
• user-friendly interface
• excellent washing and rinsing thanks to specially designed wash arms Rinsing with innovative tabs made of stainless steel
• door with double walls for thermal-acoustic insulation and with counterweight

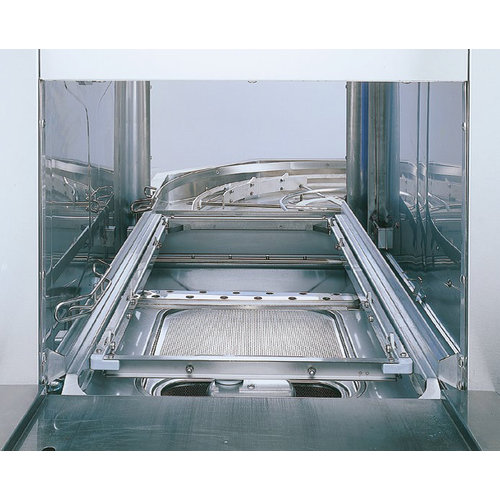

• hygienic guides allowing to achieve the best washes

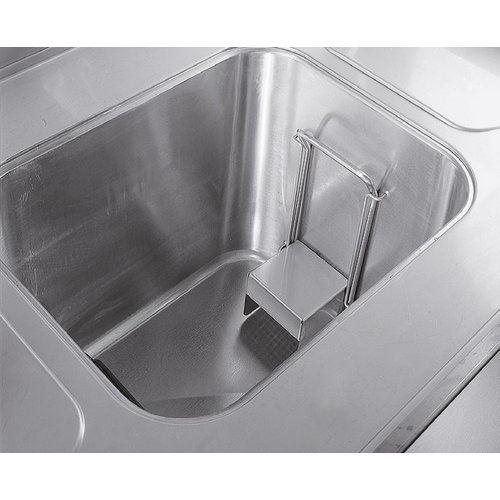

• specially contoured tank facilitating the walking Residues
• stainless steel doors 10/10
• legs Empowering proper leveling of the dishwasher
• modular dishwashers allow you to choose the right model depending on your needs
• compact line EVO101 - EVO201 ideally suited to premises with a limited area combining high efficiency with reduced water consumption
• Available pre-washing module Removes greater residues, accumulating them in an easy to empty a drawer filter (EVO301-EVO431 models)
• the height of the charge 450mm allows you to wash larger dishes, baking sheets, pots and various utensils Kitchen
• Dishwashers do not have a wash-drying and ribbed fluid feeder
• optionally available washing liquid dispenser -
• Optionally available Liquid fluid dispenser
• electric, drainage and water supply cable
  3/4 inch

included:

• 1x glass basket 50x50x10 cm
• 2x basket for 18 plates 50x50x10 cm
• 1x basket on cutlery with 4 partitions

Technical parameters:

• external dimensions WXDXH [mm]: 3119x813x1825
• maximum load height [mm] : 450
• Dimensions of the basket [mm]: 500x500
• Efficiency [Number of baskets / h]: 135/200/270
• Total power [kW]: 30 , 1 (55 ° C) / 39.6 (15 ° C) *
• power supply [v]: 400
• pre-washing module: yes
• capacity tank [L]: 69
• Washing pump power [kW]: 1.5
• washing module: yes
• tank heater power [kW]: 10, 5
• Washing pump power [kW]: 1.5
• end rinsing module: yes
• rinsing pump power [kW]: 0.2
• boiler heater power [kW]: 9.5
• water consumption [l / h - 2bar]: ~ 230
• suggested supply water temperature [° C]: + 55
• minimum water pressure [bar]: 1.5
• dried module: yes
• fan power [kW]: 0.55
• Performance [m3 / h]: ~ 1400
• power of heating elements [kW]: 6
• heat recovery module: no
• power w [kW]: -
• capacity [m3 / h]: -

* If cold water is connected: 10 ÷ 25 ° C, a heat recovery module is required , 26 ÷ 50 ° C, an additional EV-B9 boiler

is required. Why choose EVO tunnel dishasers from Krupps?

• guarantee very high performance and are adapted to extreme overloads
• The construction allows you to expand the dishwasher by subsequent modules, according to the premises
• EVO dishwashers combine high performance with low water consumption
• Dishwasher has a very efficient cleaning pump that allows exactly Wash even strongly soiled dishes with low energy consumption
• All KRUPPS dishwashers have a
• KRUPPS dishwashers are 50 years of experience of the Italian manufacturer in the construction of this type of equipment, which is associated with very low emergency and innovative solutions affecting the quality of washing and low energy consumption
• 12 month warranty in CA Łaj Polski
