Stationary Chamber Vacuum Packing Machine, Sealing 2 x 550 mm, 100 m³/h, 3,0-5,0 kW, 400V, on Wheels

Stationary Chamber Vacuum Packing Machine, Sealing 2 x 550 mm, 100 m³/h, 3,0-5,0 kW, 400V, on Wheels

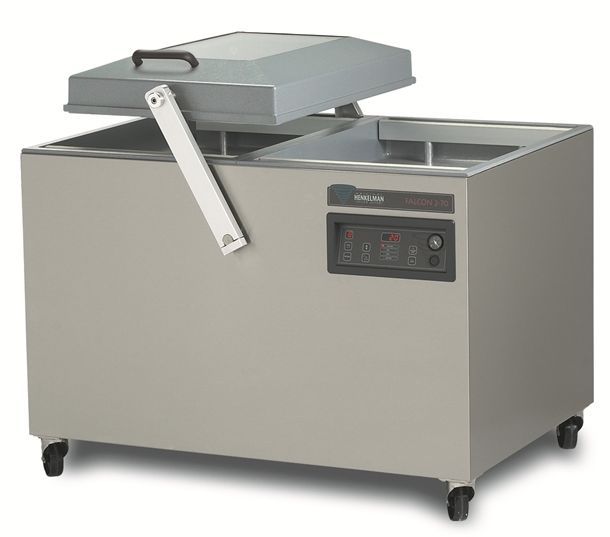

chamber and covers a series of FALCON   is made of aluminum and stainless steel. Packing these are widely used not only in food processing plants and warehouses, but also in other industries enterprises, wherever there is a need vacuum packaging. Electronically controlled packing Falcon 2-70, with two strips in each chamber with a length of 550 mm, equipped with a vacuum pump by Busch with a capacity of   100 m³ / h , which allows For 99.98% vacuum. A single cycle is 15-40 seconds. The device is made of stainless steel has hygienic chamber made of extruded aluminum and an aluminum lid with a window . Equipped with a digital interface with ability to store programs 10 control oil level, the function of the stop strip and the shut-off welding. Contains an easily removable sealing wireless terminal in a vacuum chamber, and adjusting plate for adjusting the height of the vacuum chamber.

Dimensions 1260 x 1010 x 1070 mm
size of the chamber of the packaging 700 x 550 x 235 mm
The length of the heating strip 2 x 550 mm (front and rear)
Flow rate: 100 m³ / h
Power 400V-3-50Hz
Max. size bags: 700 x 530 mm
Weight 319 kg
