Stationary Chamber Vacuum Packing Machine, Sealing 320 mm, 63 m³/h, 2,4-3,5 kW, 400V, on Wheels

Stationary Chamber Vacuum Packing Machine, Sealing 320 mm, 63 m³/h, 2,4-3,5 kW, 400V, on Wheels

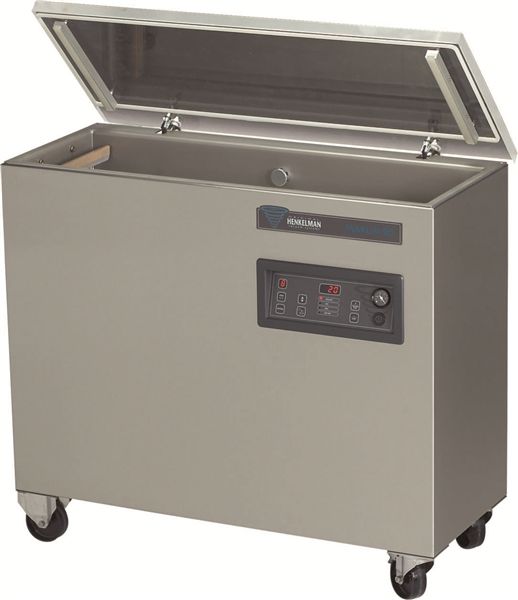

Vacuum Packing series Marlin are a perfect combination of high-quality devices with optimal efficiency. This model is detached, due to the specific dimensions of the chamber is dedicated to pack long portion of fish and meat. electronically controlled packing Marlin 90 with two strips with a length of 320 mm, equipped with a vacuum pump brands Busch capacity of 63 m³ / h , which allows for 99.98% of vacuum. A single cycle is 15-40 seconds. The device is made of stainless steel has hygienic pumped chamber   from a single piece of sheet metal. Equipped with a digital interface with ability to store programs 10 control oil level, the function of the stop strip and the shut-off welding. In addition, this model also function gentle aeration (Softair) which prevents damage and deformation of the packaged product and the bag. Comprises a transparent cover, easily removable wireless terminal welding in a vacuum chamber, and adjusting plate for adjusting the height of the vacuum chamber.

Dimensions 480 x 1066 x 970 mm

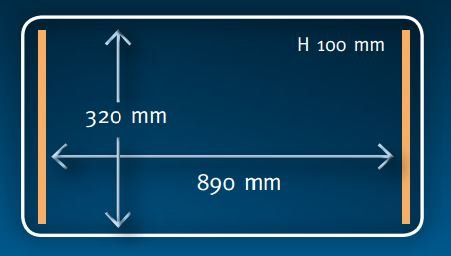

the packing size of the chamber 320 x 890 x 100 mm
The length of the heating strip 2 x 320 mm
Flow rate: 63 m³ / h < br> Power 400V-3-50Hz
Max. size bags: 500 x 500 mm
Weight 219 kg
