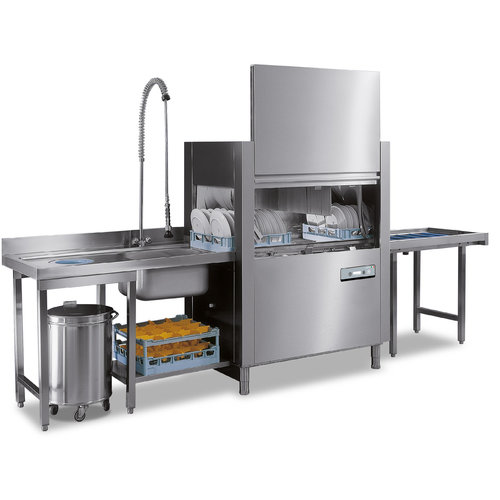

Conveyor Dishwasher 500 x 500 mm with Pre Cleaning System and Electronic Control, up to 200 baskets/h

Conveyor Dishwasher 500 x 500 mm with Pre Cleaning System and Electronic Control, up to 200 baskets/h

description:

• casing made entirely of high quality stainless steel
• double filter in the chamber stopping even the smallest dirt, the first layer made of stainless steel, second made of plastic
• vertical cleaning pumps provide excellent performance
• gravitational outflow
• washing temperature: 60-63 ° C
• burning temperature: 80 ° C
• legs to facilitate proper leveling of the dishwasher
• electronic control panel
• user-friendly interface

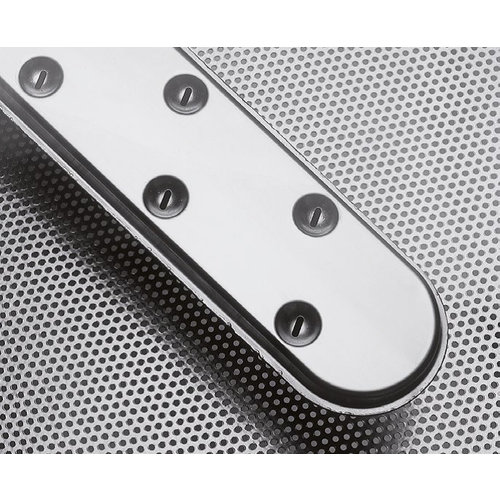

• excellent washing and rinsing thanks to specially designed wash arms Rinsing with innovative tabs made of stainless steel
• door with double walls for thermal-acoustic insulation and with counterweight
• hygienic guides allowing to achieve the best washes
• specially contoured tank facilitating the walking Residues
• stainless steel doors 10/10
• legs Encommunizing proper leveling of the dishwasher
• modular dishwashers allow you to choose the right model depending on your needs
• compact line   EVO101 - EVO201   ideally suited to premises with a limited area combining high efficiency with reduced water consumption
• Available pre-washing module removes greater residues, accumulating them in an easy to empty a drawer filter (models   EVO301-EVO431)
• height of the charge 450mm allows you to wash larger dishes, baking sheets, pots and various kitchen utensils
• Dishwashers do not have a standard and NBSP dispenser; wash and glossy fluid
• optionally available washing fluid dispenser -
• Optionally available Liquid fluid dispenser
• electric, drain and water power cord
  3/4 inch
• third speed   EV-3SPD for additional payment -   1030 PLN net

Included:

• 1x glass basket 50x50x10 cm
• 2x basket for 18 plates 50x50x10 cm
• 1x cutlery basket with 4 parties

Technical parameters:

• external dimensions wxdxh [mm]: 2568x813x1825
• maximum load height [mm]: 450
• bin dimensions [mm]:   500x500
• Performance [Number of baskets / h]: 200/100
• Total power [kW]:   32,4
• power supply [v]: 400
• pre-washing module: yes
• tank capacity [l]: 69
• Washing pump power [kW]: 1.5
• washing module: yes
• power heater power [kW]: 10.5
• Washing pump power [kW]: 1.5
• rinsing module: yes
• Boiler heater power [kW]:   12
• water consumption [l / h - 2bar]:   ~ 300
• suggested supply water temperature [° C]: +15
• minimum water pressure [bar]: 1.5
• dried module:   yes
• fan power [kW]: 0.55
• Performance [m3 / h]: ~ 1400
• power of heating elements [kW]: 6
• mo High heat recovery:   yes
• capacity power [kW]:   0.2
• capacity [m3 / h]: 70

* If cold water is connected: 10 ÷ 25 ° C, a heat recovery module, 26 ÷ 50 ° C is required. An additional boiler EV-B9

Why should I choose the EVO tunnel dishwashers brand KRUPPS?

• guarantee very high performance and are adapted to extreme overloads
• the construction allows you to expand the dishwasher by subsequent modules, according to the needs of the premises
• EVO dishwashers combine high performance with small Water consumption
• Dishwasher has a very efficient cleaning pump that allows you to thoroughly wash evenly soiled dishes with low energy consumption
• All KRUPPS dishwashers have a burning function
• Dishwasher KRUPPS are 50 years of experience of the Italian manufacturer in the construction of this type of devices, which is associated with very low failure rate and innovative solutions affecting the quality of washing and low consumption en Ergii
• 12 month warranty throughout Poland
