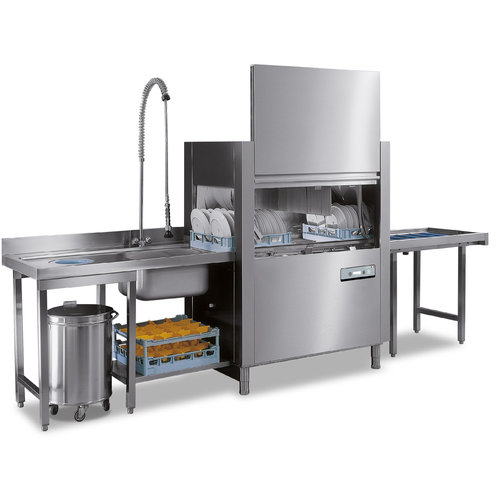

Conveyor Dishwasher 500 x 500 mm, up to 200 baskets/h

Conveyor Dishwasher 500 x 500 mm, up to 200 baskets/h

description:

• casing made entirely of high quality stainless steel
• double filter in the chamber stopping even the smallest dirt, the first layer made of stainless steel, second made of plastic
• vertical cleaning pumps provide excellent performance
• gravitational outflow
• washing temperature: 60-63 ° C
• burning temperature: 80 ° C
• legs to facilitate proper leveling of the dishwasher
• electronic control panel
• user-friendly interface
• excellent washing and rinsing thanks to specially designed wash arms Rinsing with innovative tabs made of stainless steel
• door with double walls for thermal-acoustic insulation and with counterweight
• hygienic guides allowing to achieve the best washes
• specially contoured tank facilitating the walking Residues
• stainless steel doors 10/10
• legs Empowering proper leveling of the dishwasher
• modular dishwashers allow you to choose the right model depending on your needs
• compact line EVO101 - EVO201 ideally suited to premises with a limited area combining high efficiency with reduced water consumption
• Available pre-washing module Removes greater residues, accumulating them in an easy to empty a drawer filter (EVO301-EVO431 models)
• the height of the charge 450mm allows you to wash larger dishes, baking sheets, pots and various utensils Kitchen
• Dishwashers do not have a wash-drying and ribbed fluid feeder
• optionally available washing liquid dispenser -
• Optionally available Liquid fluid dispenser
• electric, drainage and water supply cable
  3/4 inch
• third speed EV-3SPD for surcharge - 1030 PLN net

included:

• 1x glass basket 50x50x10 cm
• 2x basket for 18 plates 50x50x10 cm
• 1x cutlery basket with 4 compartments

Technical parameters:

• External dimensions WXDXH [mm]: 1968x813x1810
• maximum height of the batch [mm]: 450
• Dimensions of the basket [mm]: 500x500
• Performance [Number of baskets / h ]: 200/100
• Total power [kW]: 25.9
• power supply [v]: 400
• pre-washing module: Yes
• tank capacity [L]: 69
• Washing pump power [kW]: 1.5
• washing module: Yes
• power of tank heater [kW] ]: 10.5
• Washing pump power [kW]: 1.5
• Rinsing module: Yes
• power heater boiler [kW]: 12
• water consumption [L / H - 2BAR]: ~ 300
• Suggested supply water temperature [° C]: +15
• minimum water pressure [bar]: 1 , 5
• dried module: not
• fan power [kW]: -
• capacity [m3 / h]: -
• power heating elements [kW]: -
• heat recovery module: yes
• ventilator power [kW]: 0.2
• capacity [m3 / h]: 70

* If cold water is connected: 10 ÷ 25 ° C, a heat recovery module, 26 ÷ 50 ° C required, is required There is an additional boiler EV-B9

Why choose EVO tunnel dishwashers from Krupps?

• guarantee very high performance and are adapted to extreme overloads
• construction Allows you to expand the dishwasher by subsequent modules, according to the premises
• EVO dishwashers combine high performance with low water consumption
• Dishwasher has a very efficient cleaning pump that allows thoroughly wash evenly soiled dishes at low Energy consumption
• All KRUPPS dishwashers have a burning function
• KRUPPS dishwashers are 50 years of experience of the Italian manufacturer in the construction of this type of equipment, which is associated with very low failure and innovative solutions affecting washing quality and low energy consumption
• 12 month warranty throughout Poland
