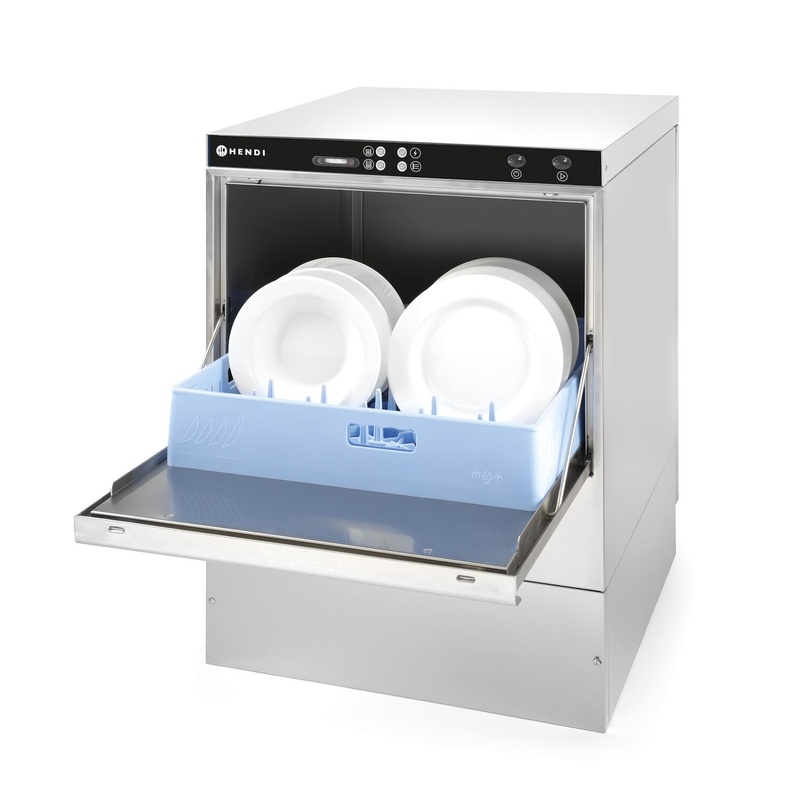

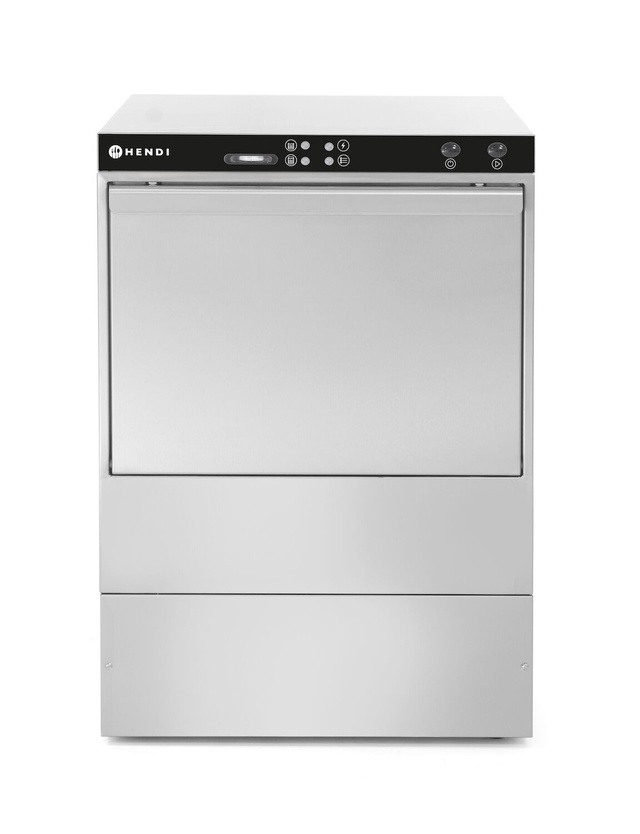

Undercounter Dishwasher 500 x 500 mm up to 30 baskets/h

Undercounter Dishwasher 500 x 500 mm up to 30 baskets/h

• Control electromechanical
• Stainless steel AISI 304
• At the bottom of rotary separate wash arms (plastic) and rinse stainless steel
• At the top of stationary wash arms, rinse arms rotating, stainless steel
• Robust door-layer
• amount / l. wash cycles: 1/120 s
• Yield 30 baskets / h
• Max. h. mytego glass 325 mm
• Max. h. washed in 335 mm plates
• Water consumption per one washing cycle is 2-2.5 l (depending on the mains pressure)
• Temp. Water washing 62 ° C
• Temp. water rinse 85 ° C wyparzającej
• concept. and the power of the boiler 6 l / 3 kW 230 V and 6 kW at 400 V
• concept. and the power of the tub 35 l / 2.8 kW
• Pump power 0.75 kM
• safety thermostat of the boiler to + 105 ° C
• safety thermostat baths to + 99 ° C
• Analogue thermometer water in the boiler
• the leakage pump: IP 44
• Weight 57 kg

• 1x basket size 500x500x (H) 105 mm, on a glass
• 1x basket with pins in a 5x8 p., 500x500x (H) 105 mm, plates deep and shallow
• 1x cage 110x110x (H) 130 mm, cutlery
• rinse aid dispenser
• is adapted for mounting the detergent dispenser (screw in the rear wall of the tub)
• supply hose DI water. 1.5 m with connection ¾ "female thread.
• drain hose length. 2 m long by 25 mm (at height. 40 mm)
• electric cable without plug
• height-adjustable feet ± 10 mm, 40 mm
