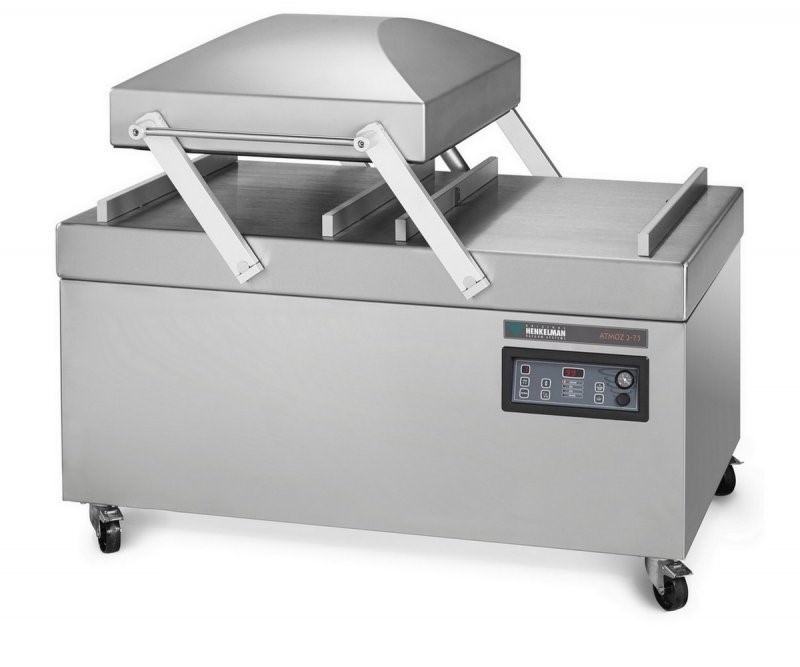

Stationary Chamber Vacuum Packing Machine, Sealing 660 mm, 160m³/h, 2,2-4,8 kW, 400V, on Wheels

Stationary Chamber Vacuum Packing Machine, Sealing 660 mm, 160m³/h, 2,2-4,8 kW, 400V, on Wheels

Series ATMOZ is a combination of high performance and ergonomics and optimum prices. Packing is intended for the food industry, wholesalers and large companies, where there is a need for vacuum packaging. Packing machines of this series are characterized by a flat work table and said sealing strips mounted in the lid so that the device is extremely easy to clean.

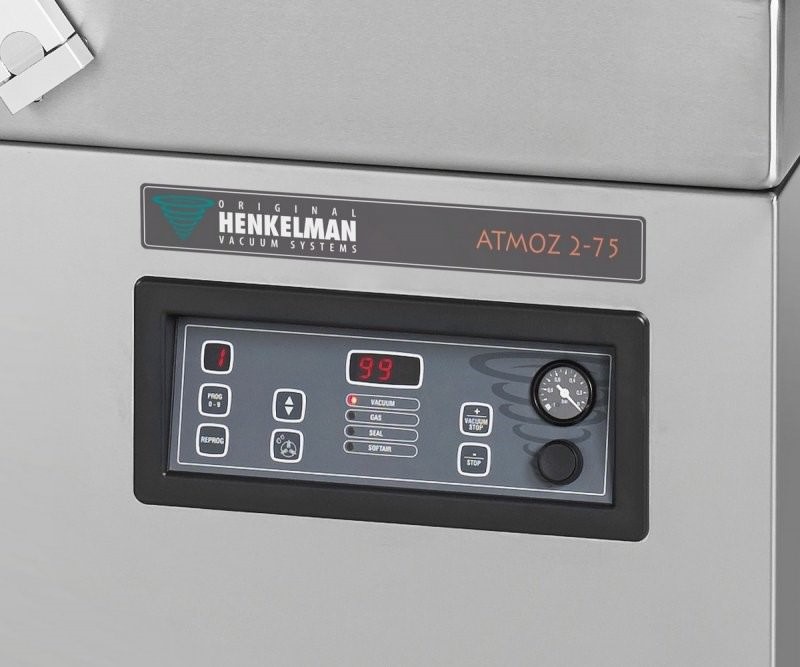

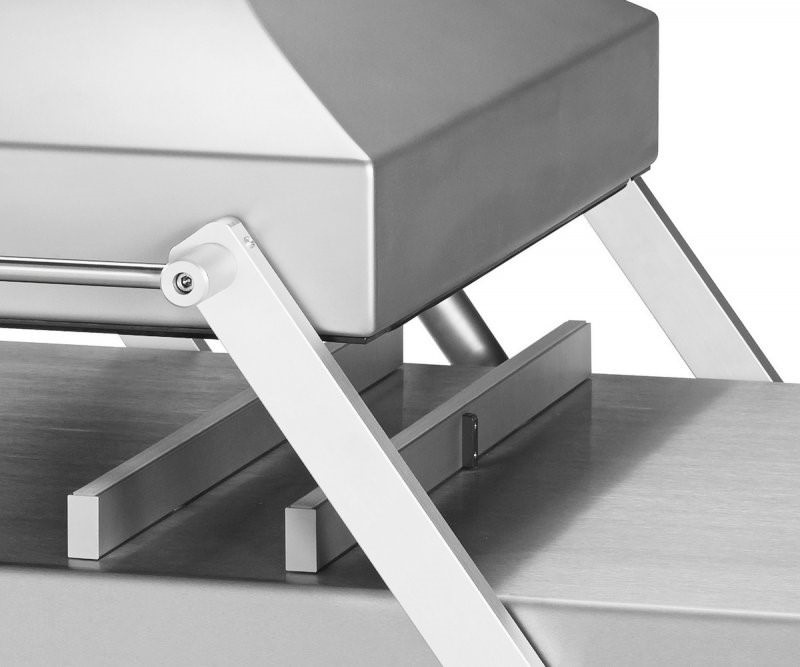

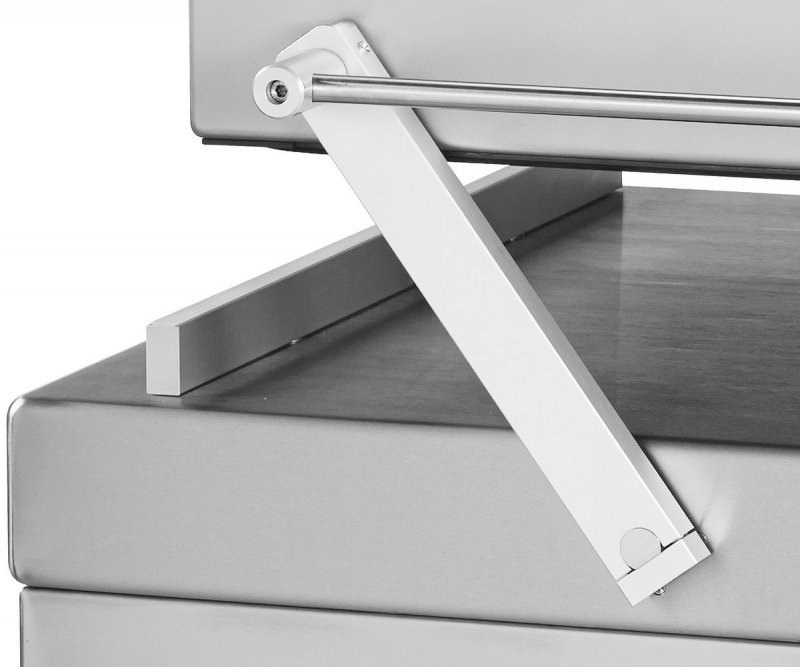

The device is made of high quality stainless steel. Noteworthy here also special hinge system , whereby a solid cover is extremely easy to control podniesienia.Panel is very intuitive and easy to use . It is possible to store 10 different programs packaging , extend the aeration or welding.

packer ATMOZ 2-75 is equipped with a vacuum pump by Busch   o high-throughput 100 m³ / h , which allows for 99.98% of vacuum and two sealing strips with a length of 660 mm (front and back). There are also other configurations of sealing bars, which can be selected depending on your needs. A single cycle is about 15-40 seconds.

Dimensions 1211 x 1545 x 1106 mm
size of the chamber of the packaging 760 x 660 x 280 mm
The length of the heating strip 1 x 660 mm (front and rear)
Flow rate: 100 m³ / h
Power : 400V-3-50Hz
Max. size bags: 640 x 760 mm
Power: 2.2 - 4.8 kW
Weight 462 kg
