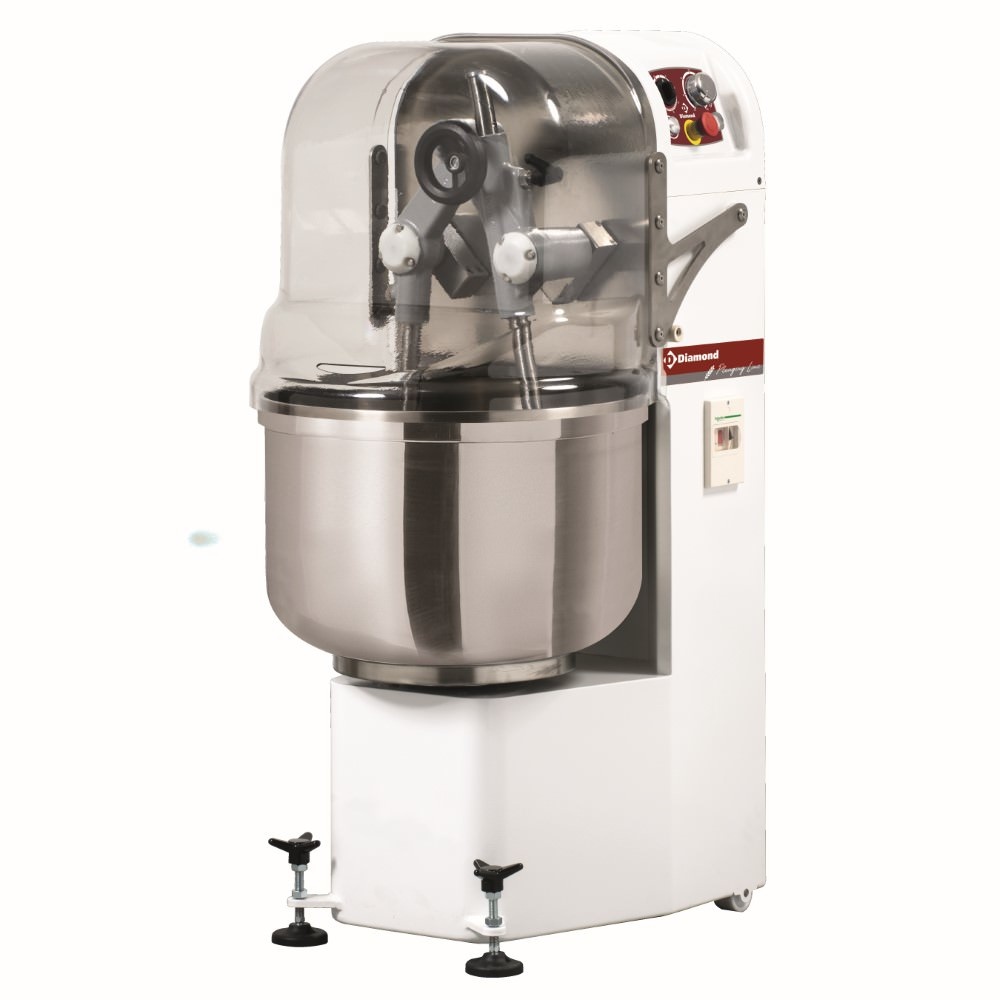

Spiral Mixer with Swing Arm 70 L, (40 kg), 2 Speeds, 1,5 kW

Spiral Mixer with Swing Arm 70 L, (40 kg), 2 Speeds, 1,5 kW

• 2 speeds (40 to 60 movements per minute)
• Production capacity 5 to 40 kg (70 Lt)
• Flour capacity 3 to 25 kg
• Timer supplied as standard
• Adjustable right arm
• Tank Ø 530xh320 mm
• Analog control panel with low voltage 24 V (IP55).
• Adjustable plunging arm (the one on the right).
• Gear drive made of treated and ground cast iron, self-lubricating, perfectly sealed gearbox, very quiet operation.
• Emergency stop button type "punch".
• Frame in epoxy painted steel, very thick.
• Tank, plunging arms in thick AISI 304 stainless steel.
• Protective plexiglass, with safety device by microswitch.
• Comes standard with 2 fixed rear nylon wheels and 1 swivel wheel and 2 adjustable cylinders at the front.
• The device is built in compliance with the current CE standards.

ADVANTAGE

• With their adjustable plunging arms, Diamond kneaders, of a very high quality design, are ideal for bakeries, pastry shops and pizzerias, which have a high production. By imitating the action of manual and traditional kneading by the baker, the plunging arms not only provide excellent oxygenation of the dough piece, but also impeccable quality. These mixers are suitable for kneading soft mixtures as well as more consistent mixtures.
