Stationary Chamber Vacuum Packing Machine, Sealing 2 x 840 mm, 300 m³/h, 7,0 – 9,0 kW, 400V, on Wheels

Stationary Chamber Vacuum Packing Machine, Sealing 2 x 840 mm, 300 m³/h, 7,0 – 9,0 kW, 400V, on Wheels

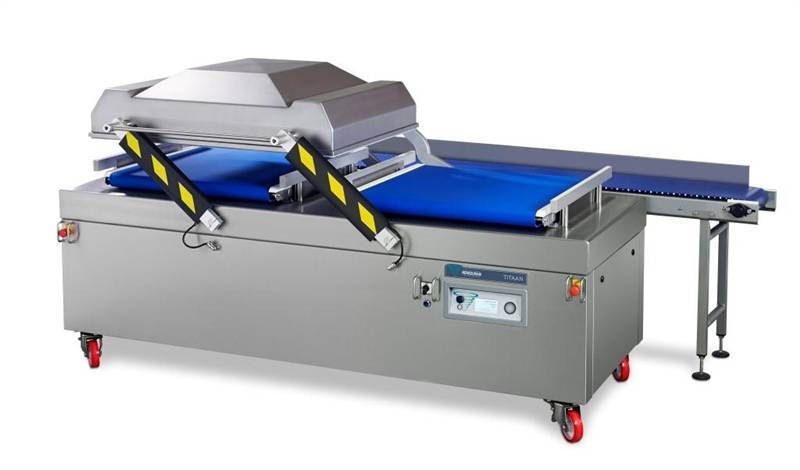

packaging machine Titaan 2-90 is the most advanced, fully automatic Henkelman machine. It is intended for meat plants, a food industry, wholesalers and all places where very high performance is needed, reliability and automation of processes.

The device is made of high quality materials, high-strength stainless steel. A fully automatic cover accelerates and facilitates the packaging process. Overload strips protect and increase user safety. The product after packaging is transported on belt conveyors for the packer where you can optionally set another lift with a width of 400 or 600mm and 3000 mm long.

Titaan 2-90 packaging machine is equipped with an advanced and multifunctional ACS control system that allows you to remember Even 20 programs and offers many additional options such as marinating, softening, the ability to connect the ETC printer.

Titaan 2-90 packaging machine is equipped with a vacuum pump. BUSCH with high efficiency 300 m³ / h , which allows you to obtain 99.98% vacuum and two wetting strips with a length of 840 mm (right iley). There are also other configurations of welding slats that can be selected depending on your needs. A single operation cycle is about 10-30 seconds. The machine is equipped with a standard in the function of a delicate aeration (Softair) that prevents damage and deformations of the packaged product and bags.

Optional equipment:

• Wide weld Single 8 mm
• Possibility to order packers with a sealing and shut-off strip
• Sensor H2O (point sensor boiling)
• automatic emptying chambers
• transport conveyor 3000 × 400 mm
• transport conveyor 3000 × 600 mm

External dimensions: 1180 x 2420 x 1150 mm

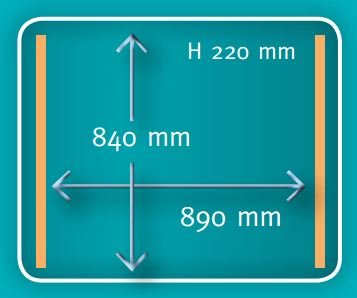

packaging chamber size: 840 x 890 x 220 mm
Heating strip length: 2 x 840 mm (right and left)
Pump performance: 300 m³ / h
Power: 400V-3-50Hz
max. Size bags: 890 x 820mm
power: 7.0 - 9.0 kW
Weight: 850 kg
