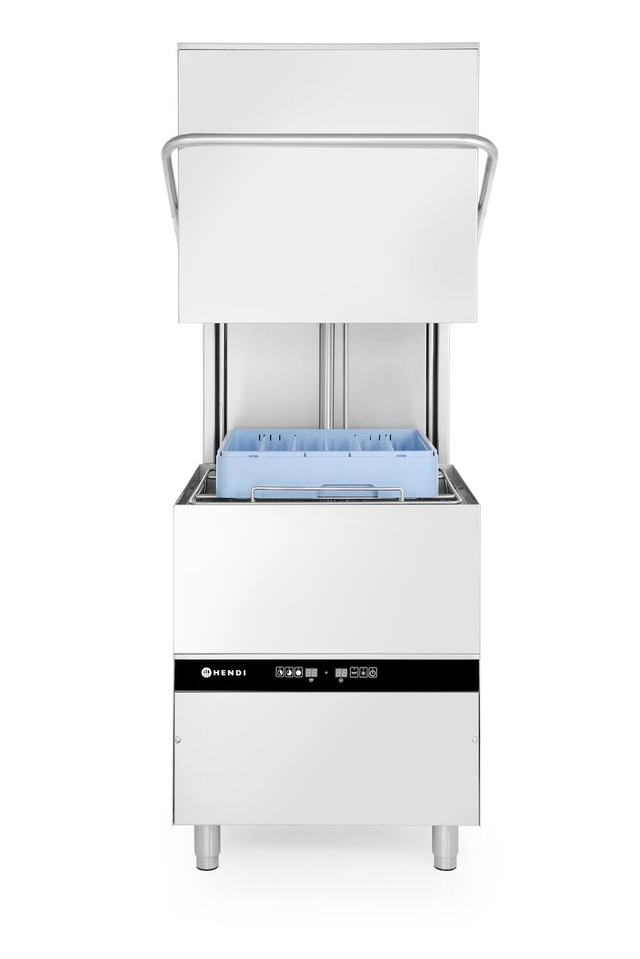

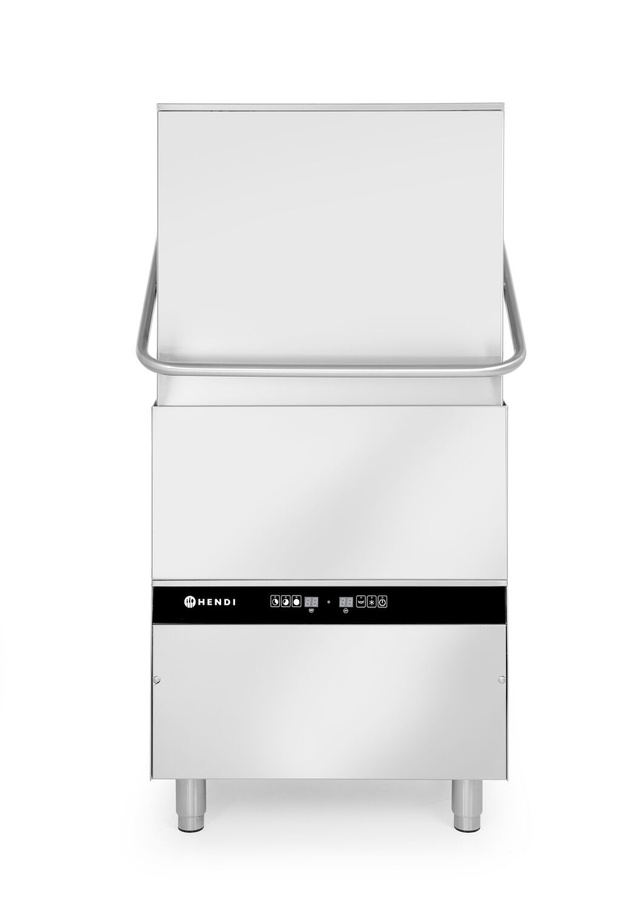

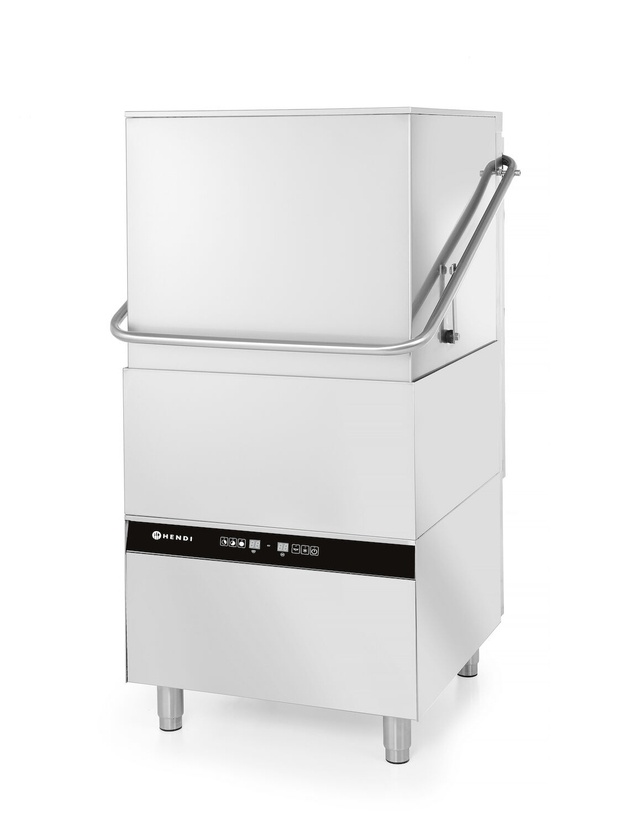

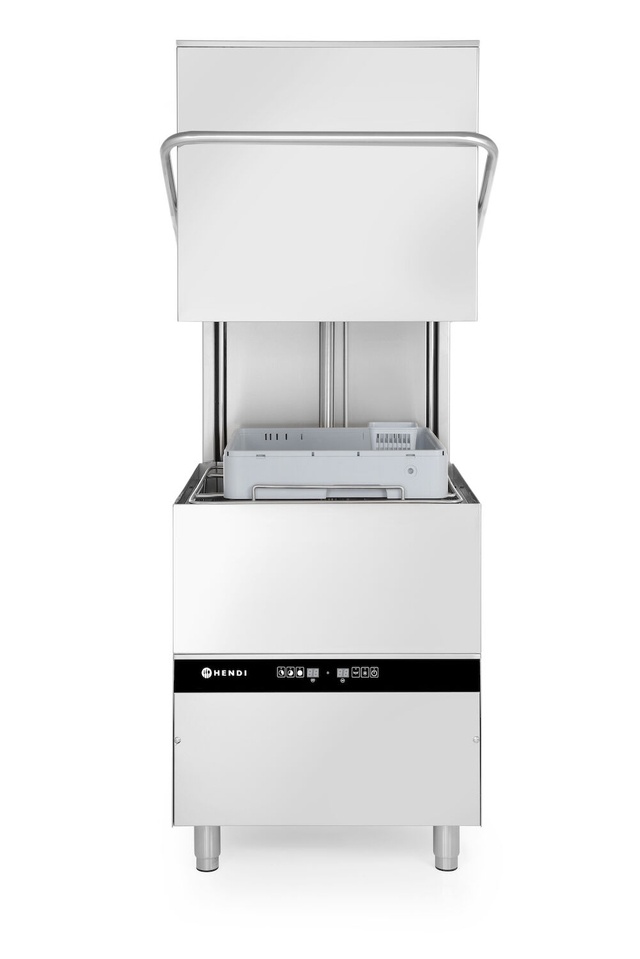

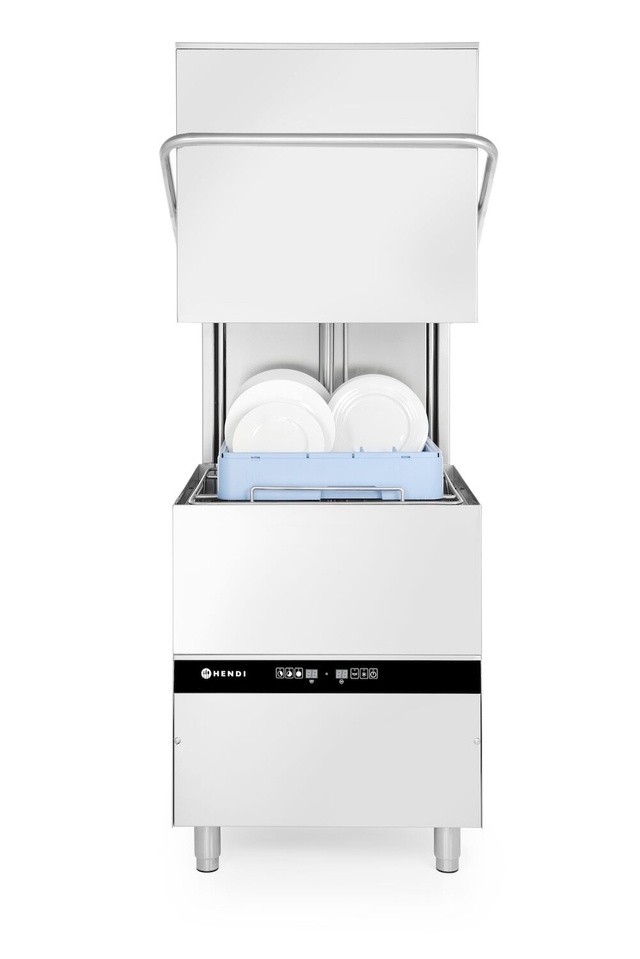

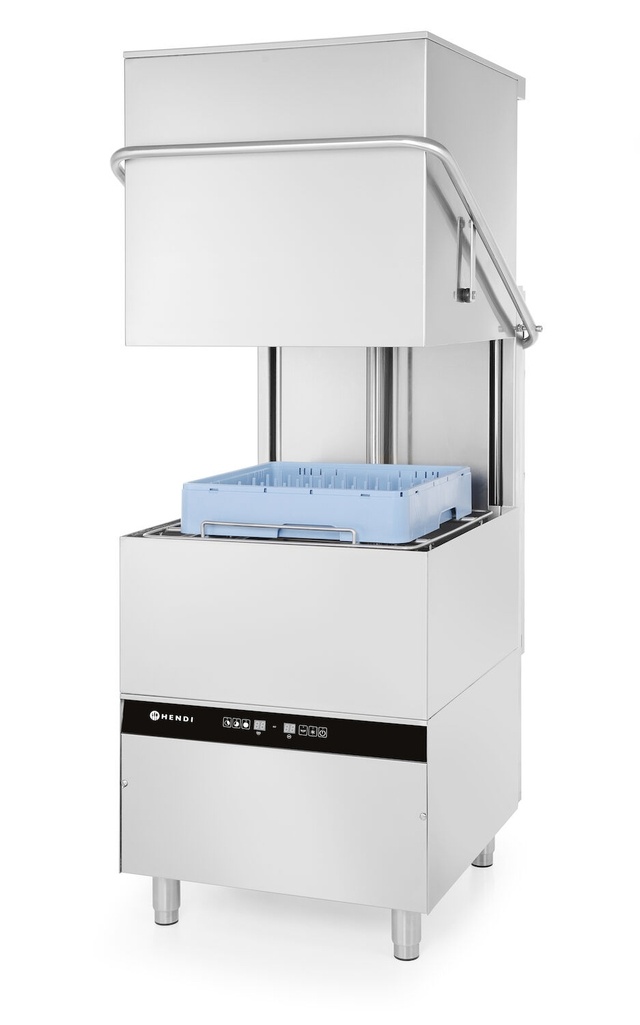

Pass-Through Dishwasher 500 x 500 mm with Digital Control, up to 60 baskets/h

Pass-Through Dishwasher 500 x 500 mm with Digital Control, up to 60 baskets/h

• extremely simple to use, maintain clean and even servicing
• ideal for cleaning plates, cutlery, glass, cups, tacs, containers GN 1/1
• Control Electronic
• Maximum height of washed plates 400 mm
• maximum height of washed glass 395 mm
• touch, electronic control panel
• stainless steel housing AISI 304
• upper and lower wash and rinsing arms made of stainless steel
• lifting the hood facilitated thanks to built-in spring
• QUANTITY / Washing cycle length: 3/60 S, 120 S, 240 S
• yield: 60, 30, 15 baskets / h
• water consumption per 1 washing cycle 2-3 l (depending on water pressure on the network)
• Washing water temperature 60 ° C
• Rinsing water temperature, warping 85 ° C
• Capacity and boiler power 13.5 l / 7.5 kW
• capacity and power of bathtubs 68 l / 6.0 kW
• Washing pump power 1.5 hp
• electronic water thermometers separately for boiler and bathtub
• Termo Safety status for Boiler up to + 105 ° C
• safety thermostat for bathtub up to + 99 ° C
• pump tightness factor: IP 44
• functions:
• Washing Program. Dishwasher chamber
• Rinse with cold water
• especially useful when washing glass
• system "thermo-protector" to prevent cold water preventing water rinsing
• 8-point autodiagnostic system
• function "soft start" starting water pump at a lower pressure and gradual lifting so as not to damage delicate vessels
• doors with a working microswitch at raised hood
• Eco
• Function Determining Electricity In case when the device is not used for more than 15 minutes
• Equipment:
• 1 Universal basket 500x500x (h) 105 mm
• 1 basket with pins on deep and shallow plates in 5x8 pcs, 500x500x (h) 105 mm
• 1 basket on cutlery 110x110x (H) 130 mm
• Linker dispenser
• Next owing to assemble a detergent dispenser (screw in the back of a bathtub) - option
• water supply hose 1.5 m long, with connection 3 "thread wew.
• drain hose
• corner installation of a dishwasher
• water connection: 3 "
• adjustable stainless steel legs in the range from 100 to 150 mm - weight: 131.5 kg
