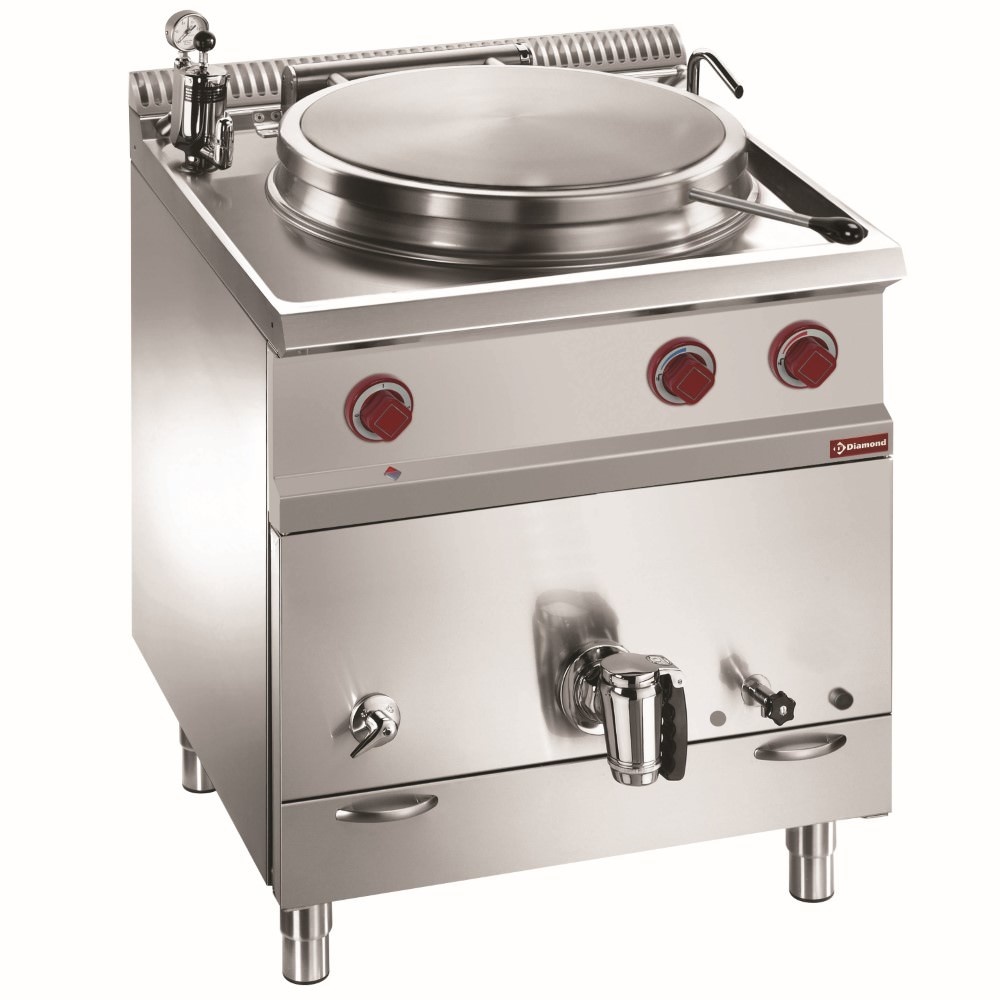

Gas Boiling Kettle 50 L with Indirect Heating, 10750 Kcal/h

Gas Boiling Kettle 50 L with Indirect Heating, 10750 Kcal/h

• Tank diameter 400 mm, depth 420 mm.
• 6/4" drain valve.
• Made of AISI 304 stainless steel, adjustable stainless steel feet.
• Deep-drawn and waterproof top (15/10 mm) in AISI 304 stainless steel.
• Rear chimney in AISI 304 stainless steel.
• Deep-drawn" tank made of AISI 304 stainless steel, bottom made of AISI 316 stainless steel (bottom of the tank 30/10 mm thick, side walls 20/10 mm thick), resistant to salt corrosion and wear, equipped with a removable strainer to protect the drain valve, rounded inner corner corners for easy and hygienic maintenance. Water tap for filling the tank, with the control positioned on the front panel.
• Deep-drawn" cover, hinges with "torsion spring" allowing gradual closing and opening, equipped with an ergonomic lateral handle made of stainless steel.
• Indirect heating, double jacketed tank, water filling by a tap positioned on the front panel of the unit, a second one acting as an overflow, allows to check the completion of the filling, monitoring indicator and drain valve. Pressure control of the double jacket at 0.5 bar by pressure switch, safety device with pressure gauge and vacuum valve placed above the top.
• Gas heating, by stainless steel burners with stabilized flame, regulation by valve, ignition by pilot and safety system by thermocouple, mechanical piezo device, front accessibility allowing very easy maintenance.

ADVANTAGE:

• Uniform cooking and good temperature thanks to the double jacketed tank. Standard with water level monitoring indicator on the double jacket and removable drain valve for tool-free lubrication and maintenance. TOP with large peripheral deep-drawing for liquid and condensate collection. On request: cover with double walls.

PLUS:

• Possibility of back-to-back arrangement 700+700 "BACK to BACK" or in combination with the brand new OPTIMA 900 700+900 range. Top in AISI 304 stainless steel with a thickness of 15/10th, front edge with drip tray, deep-drawn and waterproof tops, corners in internal corners of rounded tanks, high technology components...... A perfect finish, attention to detail, superb design and a perfect and easy alignment of the modules by head-to-head junction "HEAD to HEAD".
