Chamber Vacuum Packing Machine, Sealing 420 mm, 21 m³/h, 0,75-1,0 kW with Touch Control Panel

Chamber Vacuum Packing Machine, Sealing 420 mm, 21 m³/h, 0,75-1,0 kW with Touch Control Panel

neo This is the latest line of Henkelman vacuum packaging. This is a combination of modern technology, functionality and sublime aesthetics. The series is characterized by an elegant design and a large palette of possibilities. It is intended primarily for restaurants, catering establishments and supermarkets.

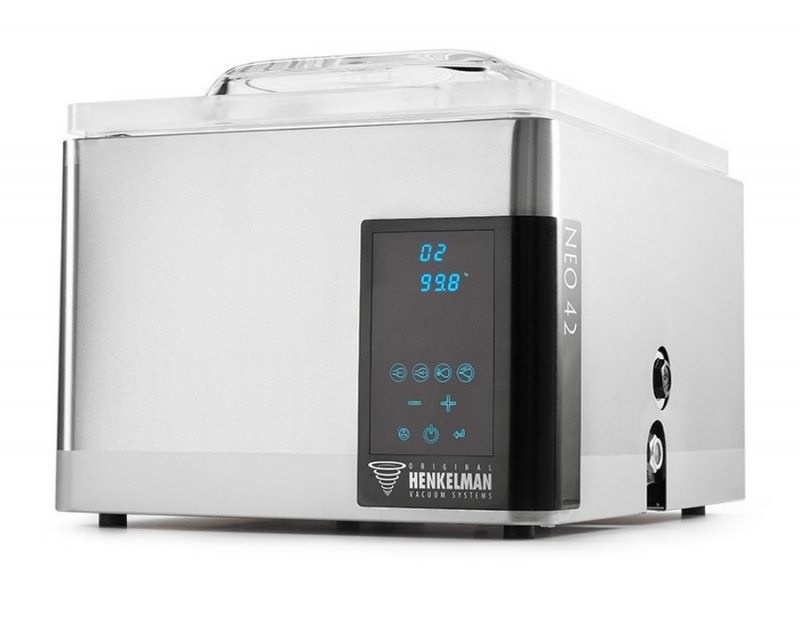

electronically controlled by means of a large touch screen Neo 42 packing with a single length of 420 mm long is equipped with a vacuum pump BUSCH With capacity 21 m³ / h , which allows 99.80% vacuum. A single work cycle is 15-30 seconds.

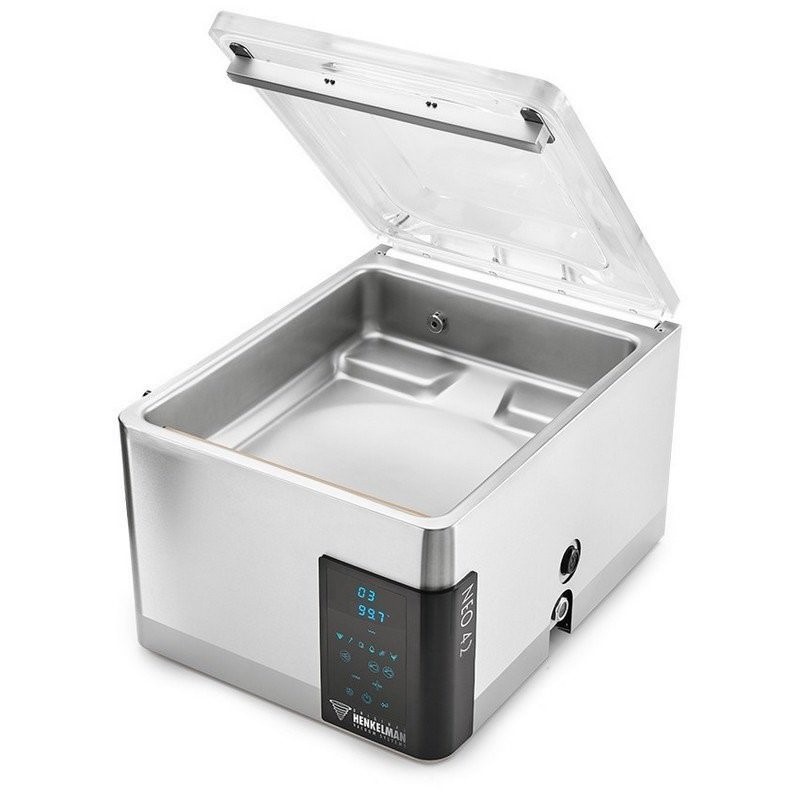

device is made of stainless steel . Neo cheese is primarily characterized by the fact that the chamber made of one piece of sheet metal is directly into the lower structure . This means that the external packing machine has no visible connection sites, is a uniform, compact design. This increases the reliability of the device to a large extent. A new design of the housing and chambers is not only tempting for the eye, but also facilitates cleaning the packaging. It also affects the fact that the edges have been rounded. new integrated hinge system provides maximum performance and reliability for more than long years.

NEO series packing panel enables wireless Bluetooth data exchange and programming even 20 operation modes . There were also special programs for individual product groups. The device can be operated in the basic range using a touch panel or via application Vacassist (available for free on android or iOS devices), which allows:

• defining program names
• full control control
• activation and deactivating options and functions in programs
• logging HACCP data
• wireless Bluttooth communication with label printer

Neo Packers have in the standard. A delicate aeration function (Softair), which prevents damage and deformations of the packed product and bags and vacuum control sensor   (enables the percentage determination of the vacuum level), which in other series is available only for additional payment. As standard, like other container series, the NEO series is equipped with a transparent cover, easily dismantled wireless welding strips in a vacuum chamber and adjusting plates for setting the vacuum chamber.

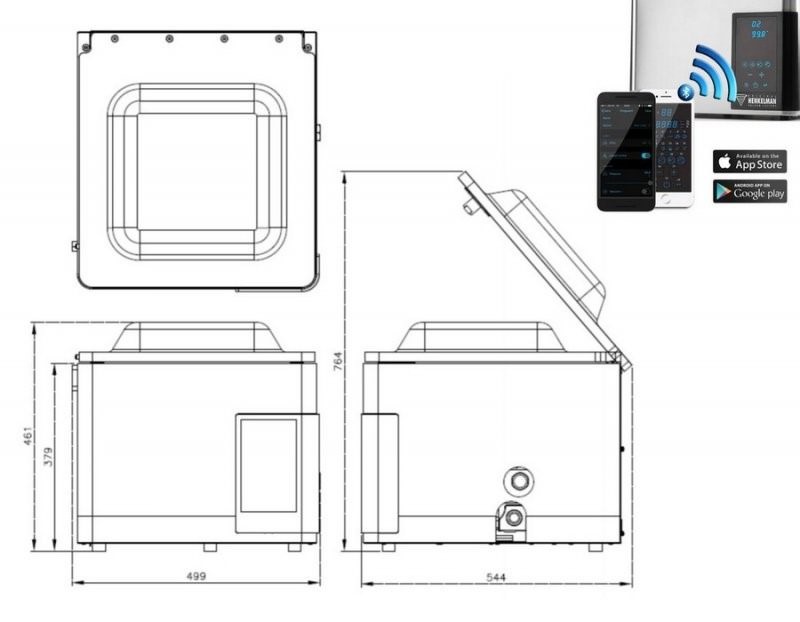

External dimensions: 544 x 499 x 461 mm packaging chamber size: 370 x 420 x 180 mm
Heating strip length: 1 x 420 mm
Pump performance : 21 m³ / h
Power: 230V-1-50Hz
max. Size bags: 370 x 400 mm
Weight: 64 kg
