Wall aggregate for the ICE freezing compartment

Wall aggregate for the ICE freezing compartment

Product card

Description:

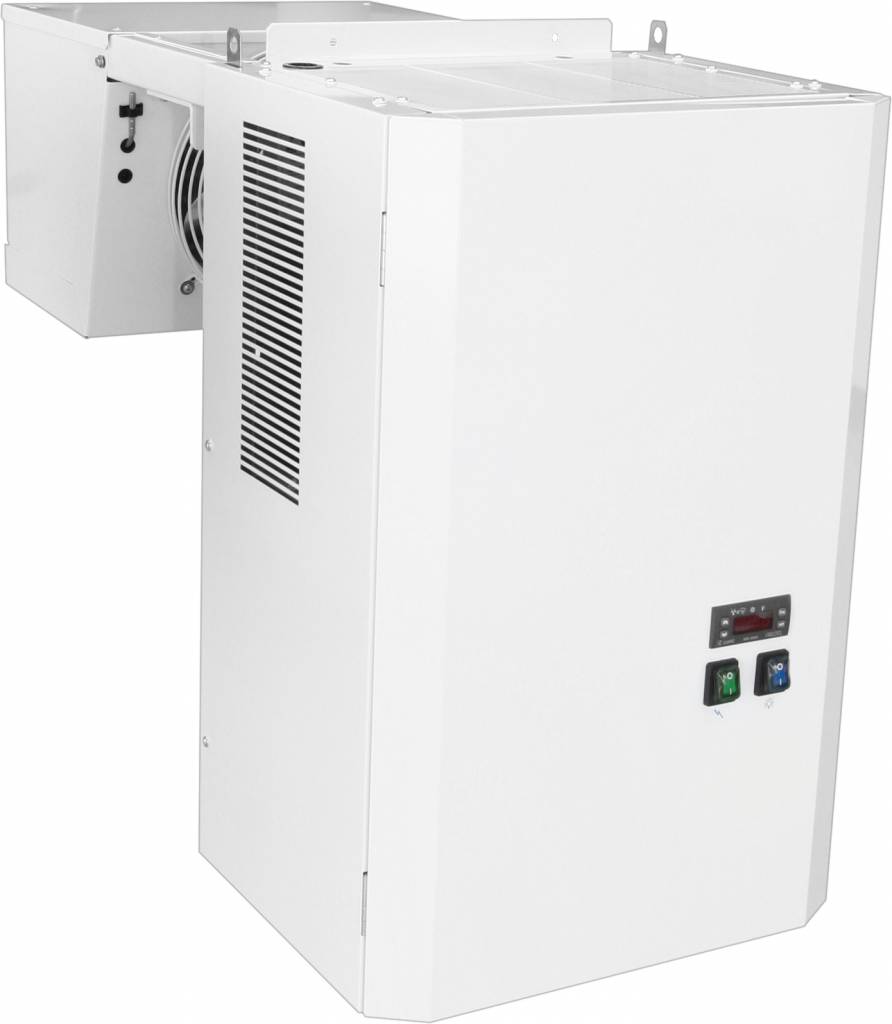

• Monoblock refrigeration machine
• suitable for placing on the wall of the refrigeration chamber.
• System facilitating installations and operation
• Hermetic Compressor
• Anti-Vibration Compressor Condenser
• Condensation> Housing made of Galvanized Painted Galvanized Painted Painted Body> The Body of ALUMINE-MAGNE ALUMINE ALUMINE ALUMINE ALUMINE ALUMINE AND Aluminum pipes
• Condenser made of copper and aluminum pipes
• Automatic restarting low and high pressure switches
• Compressor clock management to avoid too close boot
• Axial fan
• Condenser protection Fan
• Thermal compressor protection
• thermal compressor protection with motor protection (depending on the model)
• thermostatic expansion valve with external alignment (depending on the model)
• draining filter
• liquid separator on suction side
• defrosting el Ektrozawóbu hot gas
• automatic hot gas defrost
• tip plugs of high and low pressure 1/4
• condensate siphon
• condensate resistor (only for low temperature models)
• suction pressure limiting valve (only for low temperature models)
• Ceiling lighting lighting
• ambient temperature probe
• Defrachration temperature probe
• Sonda Sonding temperature control
• Connection cable for doors with 4 A fuse (only in case Models with low temperature)
• Cable connecting the microswitch to turn off the
• Transformer
• Digital Display display with the temperature indicator with an accuracy of one decimal space
• Switch / switch
• LIGHT switch in cold store
• Work status indicator
• Programming keys
• Alarm display
• Manual defrost button
• Acoustic alarm
• Emergency Timer

Technical parameters:

• power supply [v]: 2 30
• power [HP]: 1.2
• power [kW]: 0.89
• temperature range: - from -25 ° C for capacity 4 , 39 m ³ - from -20 ° C for capacity 5.4 m ³ - from -15 ° C for capacity 6.49 m ³
