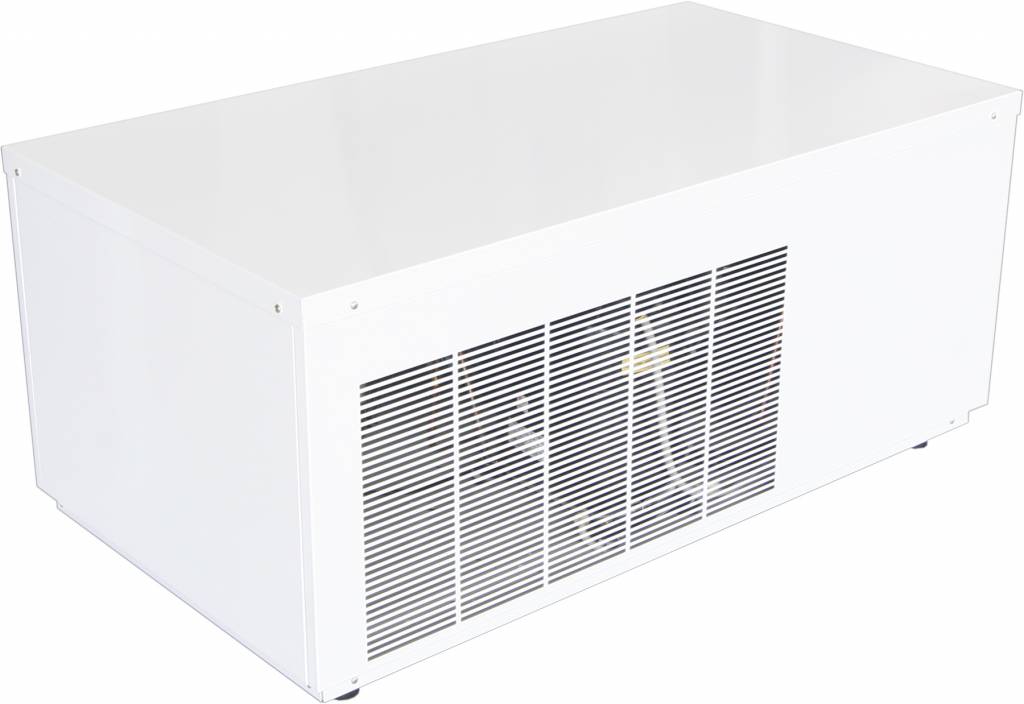

The POLO type SPLIT cooling compartment aggregate

The POLO type SPLIT cooling compartment aggregate

Product Card

Description:

• Split
• Refrigerated Device> Made for refrigerators for storing fresh and frozen products
• Hermetic Compressor
• semi-cell compressor (depending on the model)
• Ceiling lighting lighting
• Antivibracy for the
• compressor resistance
• air condensation
• Sound absorbing body coating
• Housing made of galvanized powder coated steel sheet
• evaporator and condenser evaporator body and condenser made of copper pipes and aluminum lamella
• automatic restarting low and high pressure switches
• compressor clock management to avoid too close start-up
• fan Axial
• Safety valve (depending on the model)
• Protection of the condenser fan
• thermal compressor protection
• thermal compressor protection with motor protection (depending on the model)
• Caplan control pressure switch ia
• thermostatic expansion valve with external equalization
• drainage filter
• liquid gas electrical electrode> sight glass
• cube stopping pipe
• cock stopping liquid gas pipe
• automatic electrical gauge
• stop sterile compressors
• high and low pressure pipe plugs 1/4 "
• condensate resistor (only for low temperature models)
• thermal magnetic switch
• ambient temperature probe, defrosting control, condensing control
• Connection cable for a door resistutor with 4 A fuse (only for low temperature models)
• Cable connecting the door microswitch to turn off the system and turn on the light when opening the door
• FREE relay for transmitting alarm signals
• Remote control includes: - transformer-- digital display with temperature indicator with an accuracy of one decimal place - switch / switch - light switch in CLOWNER-- Work status indicator-- programming keys-- Alarm display-- Manual defrost button-- acoustic alarm-- Emergency timer

Technical parameters:

• Power supply [v]: 230
• power [HP]: 0.33
• power [kW]: 0.6
• temperature range: - from - 2 ° C for capacity 3.7 m ³ - from -0 ° C for capacity 4.2 m ³ - from + 5 ° C for capacity 4.34 m < SUP> 3
